F-13-EMI Shielded Woven Sleeve

Keywords：

Category：

Products

Woven Sleeve for Military

Hot-line:

+86-411-87166669

Contact

Details

Introduction

The shielding braided sleeve is braided by aramid multifilament + metal wire, which has the function of electromagnetic signal shielding, and has strong mechanical toughness, acid and alkali corrosion resistance, and light specific gravity. Widely used in military, aerospace, aviation weapons and equipment, new energy vehicles and other electronic and mechanical equipment, instruments and outside the wires or cables of radio equipment, play the role of shielding and mechanical protection.

Features

Operating temperature.: -55℃~240℃

Standard colors: silver, gray

Electromagnetic shielding effect

Compliant with：RoHS

Technical Data

Product performance		Unit	Requirement
shielding performance	GB/T12190-2006	db	≥60
Mold resistant	GJB150.10A-2009	-	Not inferior to class 1
Salt spray resistant	GJB150.11A-2009	-	No apparent change in appearance
Salt spray resistant	Tensile Strength	MPa	≥70% of the initial value
Humid and heat resistant	GJB150.9A-2009	-	No apparent change in appearance
Humid and heat resistant	Tensile Strength	MPa	≥70% of the initial value
Radiation resistant	QJ10004-2008	-	No apparent change in appearance
Radiation resistant	Tensile Strength	MPa	≥70% of the initial value

Dimension
Type	Folding diameter (mm)	Extended range Min.（I）Max.(O) (mm)
004	4	3-7
006	6	4-9
008	8	6-12
010	10	7-16
012	12	8-20
015	15	10-23
020	20	13-28
025	25	18-32
030	30	20-40
040	40	30-50
050	50	40-60
Note：
1、The inner diameter refers to the circular diameter of the network pipe, and the folded diameter refers to the flat width of the network pipe.
2、The network pipe is flexible and has a large inner diameter/folding diameter tolerance
3、Products can be customized according to customer requirements
4、For detailed product parameters, please refer to the product specification approval document.

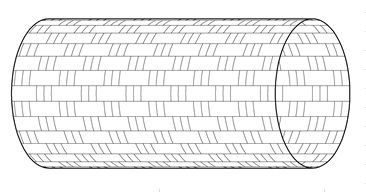

Product diagram
