A1-5 Hot melt hose/adhesive ring
Keywords：
A1-5 Hot melt hose/adhesive ring
Category：
Heat shrink products for automotive parts
Hot-line:
Details
| Introduction | |||
| Used in conjunction with heat shrinkable tubing to increase the amount of glue used for sealing, used for waterproof sealing and insulation protection of electrical wiring harness wire joints, terminals and components | |||
| Features | |||
| Operating temperature: -40℃-125℃ | |||
| Environmental protection，ELV，RoHS compliant | |||
| Color: Khaki |
| Technical Data | ||||
| Property | Test Method | Value | ||
| Specific gravity | ASTM D762 | 0.95±0.05 g/cm³ | ||
| Softening point (ball and ball method) | ASTM E28 | 130°C±10°C | ||
| Embrittlement temperature | ASTM D746 | ≤-20°C | ||
| Water absorption(23℃/24h) | ASTM D570 | ≤1.0% | ||
| Breakdown voltage | ASTM D149 | ≥500V | ||
| Volume resistivity | ASTM D2671 | ≥1.0×1010Ω.cm | ||
| Storage temperature | / | ≤45℃ | ||

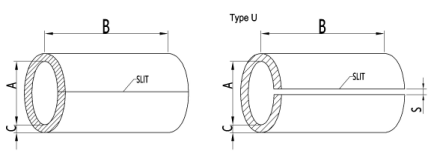

| Dimension | ||||
| Size | Diameter A(range) | Length B(±1) | WT C(nomal) | OpeningS(reference) |
| A1-5-2.3-10 | 2.3±0.2 | 10 | 0.60±0.10 | / |
| A1-5-2.3-19 | 2.3±0.2 | 19 | 0.60±0.10 | / |
| A1-5-2.3-25 | 2.3±0.2 | 25 | 0.60±0.10 | / |
| A1-5-2.9-19 | 3.1±0.2 | 19 | 0.80±0.10 | / |
| A1-5-2.9-25 | 3.1±0.2 | 25 | 0.80±0.10 | / |
| A1-5-4.0-19 | 4.0±0.2 | 19 | 0.80±0.10 | / |
| A1-5-4.0-25 | 4.0±0.2 | 25 | 0.80±0.10 | / |
| A1-5-5.0-19 | 5.0±0.2 | 19 | 0.90±0.12 | / |
| A1-5-5.0-25 | 5.0±0.2 | 25 | 0.90±0.12 | / |
| A1-5-U5-5 | 2.7±0.2 | 5 | 1.40±0.15 | 1.2 |
| A1-5-U7-5 | 3.5±0.2 | 5 | 0.90±0.15 | 1.4 |
| Cross Reference | |
| Tyco-Raychem: SAS/ SASR/ TSAS |
Product diagram
